Single Lane Sandwiching Machine makes single-color sandwich biscuits economically, with stable performance and accurate positioning. The contact part of the sandwich biscuit machine is made of SUS304 or food-grade nylon; the cover plate is made of SUS304 or plexiglass. sandwich cookie machine is easy to clean
Sanitary Design:

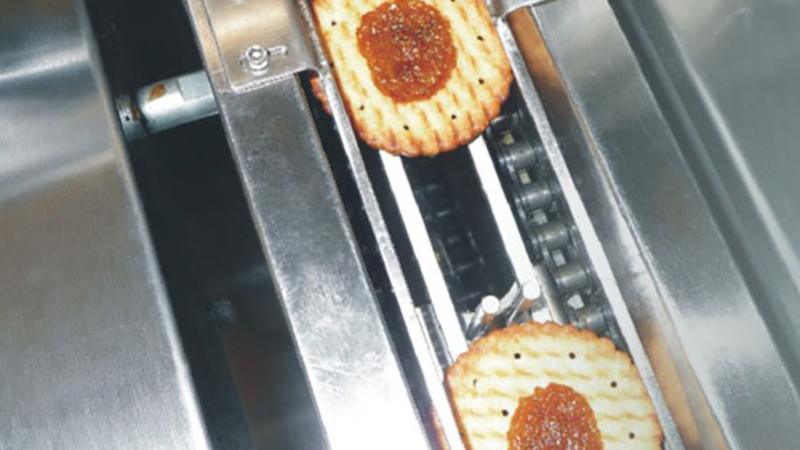

Stencil head will be blocked automatically to prevent the cream leaking onto the chain when the machine is stopped or failure of bottom biscuit feeding has been detected. The chain is automatically cleaned and dried. Space under the sandwiching table is empty and with collecting in trolleys to collect and remove the waste.
Easy Operation:

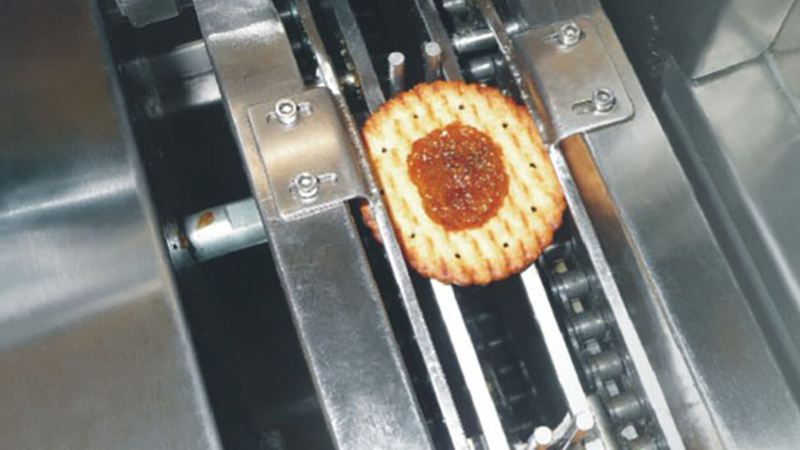

The biscuit guide bars can be adjusted simultaneously to simplify the exchange between different biscuits. Touch screen control, it provides combined control and individual control for biscuit and cream feeding, stacking, etc.
High Speed:
The sandwiching speed can reach up to 600 sandwiches/min for each single lane.
Biscuit feeding by front and rear vibrating biscuit feeding system.
Consists of “V” shape grooves and vibrating mechanism.
Frequency inverter control, the speed will be synchronizing with main machine.
Cream feeding and main machine individually designed for easy cleaning, and use SUS304 stainless steel pipe for feeding cream.
Sandwich material bucket equipped with thermostatic apparatus, total capacity: 100L
1 set of special designed rotor pump (SUS304), feed material to1 set of stencil head.
Speed of the rotor pump can be adjusted individually or combined with main machine.

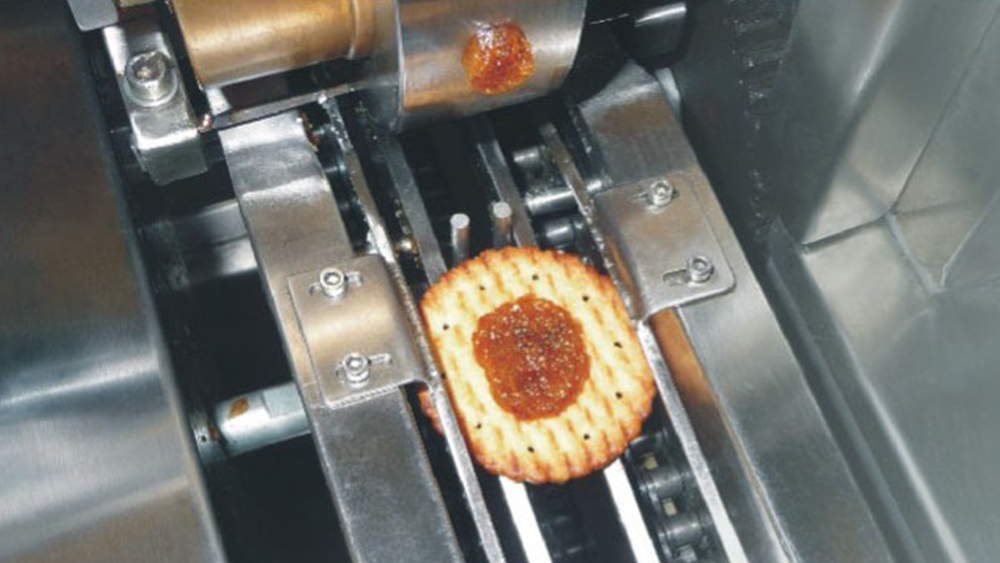

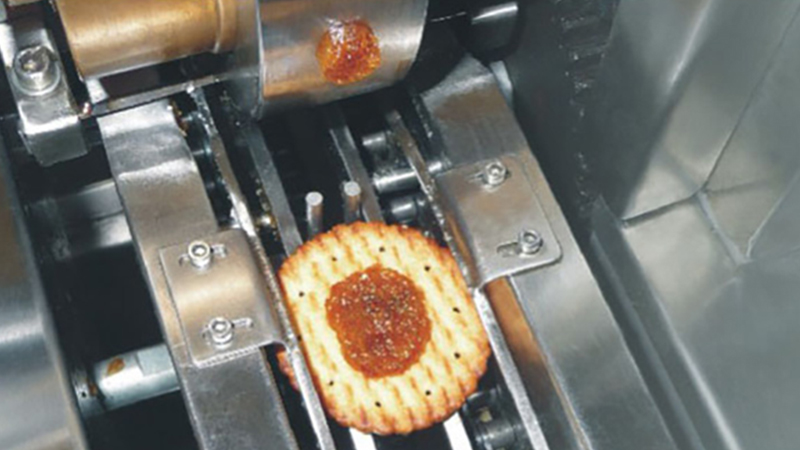

Stencil head: consists of stator, rotor and depositing mould, made of SUS304, change the
depositing mould ring for different size of cream.
Suitable for a wide range of biscuit production.
| a. Material contacted parts used SUS304 or food grade nylon; cover adopts SUS304 or organic glass. | |
| b. Total Power | 6610w, (Single phase, 220v, 50Hz/60Hz) |
| c. Main Machine | Capacity: 100-500sndwiches/min Biscuit detector: photoelectric detection biscuit jamming, automatic stop cream feeding when alarming the lack of biscuit, and resume cream feeding after testing test to biscuit. Brush Cleaner: Rotary brush roller is dipped in an alcohol pool, clean the chain. An air blowing nozzle will dry the cleaned chains. Scrap recovery: Removable scrap trays are equipped for simple scrap collection and machine cleaning |
| d. Cream Hopper | Cream feeding and main machine individually designed for easy cleaning, and use SUS304 stainless steel pipe for feeding cream. Sandwich material bucket equipped with thermostatic apparatus, total capacity: 100L 1 set of special designed rotor pump (SUS304), feed material to1 set of stencil head. Stencil head: consists of stator, rotor and depositing mould, made of SUS304, change the depositing mould ring for different size of cream. Speed of the rotor pump can be adjusted individually or combined with main machine. |
| e. Biscuit Feeding System | Biscuit feeding by front and rear vibrating biscuit feeding system Consists of “V” shape grooves and vibrating mechanism Frequency inverter control, the speed will be synchronizing with main machine. |
| f. Packing Table | Food grade PU belt with PU guard bar on two side. Frame, supporting plate, side board all use SUS304. Belt speed combine with main machine or separated control. |
