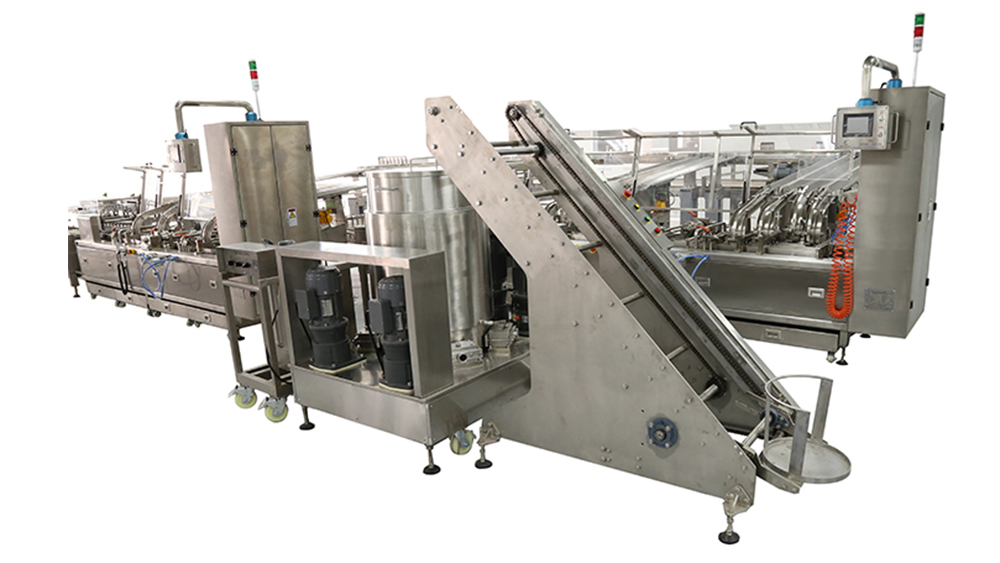

Product Description


Sanitary Design:
Stencil head will be blocked automatically to prevent the cream leaking onto the chain when the machine is stopped or failure of bottom biscuit feeding has been detected. The chain is automatically cleaned and dried. Space under the sandwiching table is empty and with collecting in trolleys to collect and remove the waste.
Easy Operation:
The biscuit guide bars can be adjusted simultaneously to simplify the exchange between different biscuits. Touch screen control, it provides combined control and individual control for biscuit and cream feeding, stacking, etc.

High Speed:
The sandwiching speed can reach up to 600 sandwiches/min for each single lane.


Product Parameters


Function:To sandwich two layers cream between two or three biscuits
Application

a. The required biscuits size is as followings: Round shape: φ30~φ60mm; Rectangle shape: L30~90mm, W30~60mm

b. Thickness: 2.7 to 8mm

Main machine

a. Speed: 400~2000pcs/min

b. There are sensors to detect the feeding of bottom biscuit, if the bottom biscuit are not be detected, the pneumatic valve will block the cream, the machine will keep on running, once the bottom biscuits is detected, the pneumatic valve will release the cream again.

c. Brush Cleaner: Rotary brush roller cleans the pushers. An air blowing nozzle will dry them.

d. Reclaiming: Bottom of the main machine equip with trolley, easy for scrap reclaiming and cleaning.

e. No biscuit the machine will stop.

f. Cream pump pressure can be adjusted.

Cream Hopper

a. Cream Hopper is separated with the main machine; uses jacketed pipe to feed cream to the main machine, Hopper 400L

b. Jacketed tank with recycle water device

c. Special designed agitator and rotor pump (SUS304); feed to stencil head.

d. Stencil head consists of stator, rotor, and mould ring, made of SUS304.

e. Speed of cream feeding can be adjusted individually or combined with main machine.

Biscuit Feeding System

a. Biscuits are fed by bottom, middle and top biscuits vibratory feeding chutes

b. Biscuit Feeder is consisted of V shape feeding chutes and vibratory device

c. Biscuit feeding speed frequency inverter adjustable, simultaneously with main machine


FAQS
  • Q1. Why choose us?
    A. We have rich experience in food machinery. We have imported a lot of technologies from our US partners and the American Engineering team always comes to and stays in     our factory frequently to guide the production and do R&D job together with Chinese Engineering team.
  • Q2. May I have your customer list?
    A. Sure, you can contact with our seller ask for it. Our customers were all pleased with our machine and service.
  • Q3. What's the guarantee period?
    A. The warranty period is within 12 months from the date of acceptance but not longer than 15 months from the date of Bill of Lading.
  • Q4. Will you send technicians for installation and commissioning?
    A. Yes, we will assign our engineering staffs to guide the installation and adjustment. But the customers shall cover some fees.
  • Q5. Could you give me some advice of the food production?
    A. Sure, we can give you some professional advice from our experience. It's our pleasure to help.
