Product Description

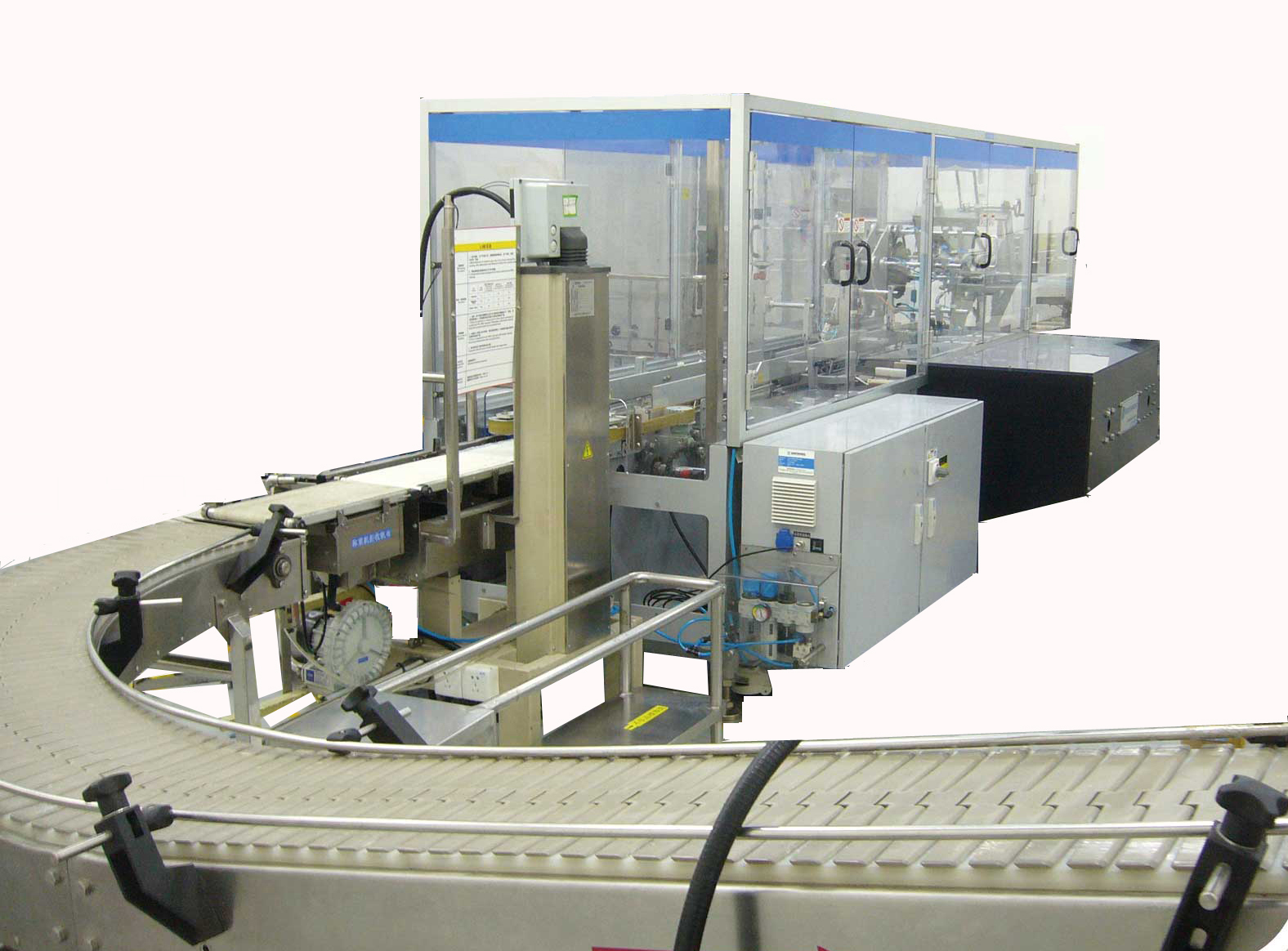

1. High speed cartoning machine is designed for all kinds of products which need to be packed in carton. The whole process is fully automatic, which includes carton feeding, carton filling, flap folding, glue spraying, carton sealing, and finished product discharging. The whole machine uses mechanical transmission system, which features high stability, high accuracy, low noise, easy maintenance and operation.
2. Using planetary motion vacuum carton board picking up system, which ensures high picking up speed and stable carton opening. No products no carton picking up.
3. 10 sets of follow-up type pushing arms ensure the synchronizations of each motion for pushing the products into the carton.
4. Large carton board storage capacity, each time can boad 2000-3000 cartons board into the hopper.
5. Using safety clutch to realize the automatic stop under overload.
6. Automatic glue spraying and automatic mechanical date printing.


Product Parameters


Packing Speed

Standard speed: 100cartons/min

Speed range: 20-150cartons/min

Max. speed: 150cartons/min

Carton Board Specification

W40mm x H40mm-W100mm x H100mm

Carton size:L105-250mm, W50-230mm, H30-120mm

Air Compression

Pressure: 5kgf/cm2

Consumption: 640nl/min

Glue SprayerNORDSON brand
DimensionL8000mm x W1900mm x H1800mm


FAQS
  • Q1. Why choose us?
    A. We have rich experience in food machinery. We have imported a lot of technologies from our US partners and the American Engineering team always comes to and stays in     our factory frequently to guide the production and do R&D job together with Chinese Engineering team.
  • Q2. May I have your customer list?
    A. Sure, you can contact with our seller ask for it. Our customers were all pleased with our machine and service.
  • Q3. What's the guarantee period?
    A. The warranty period is within 12 months from the date of acceptance but not longer than 15 months from the date of Bill of Lading.
  • Q4. Will you send technicians for installation and commissioning?
    A. Yes, we will assign our engineering staffs to guide the installation and adjustment. But the customers shall cover some fees.
  • Q5. Could you give me some advice of the food production?
    A. Sure, we can give you some professional advice from our experience. It's our pleasure to help.
